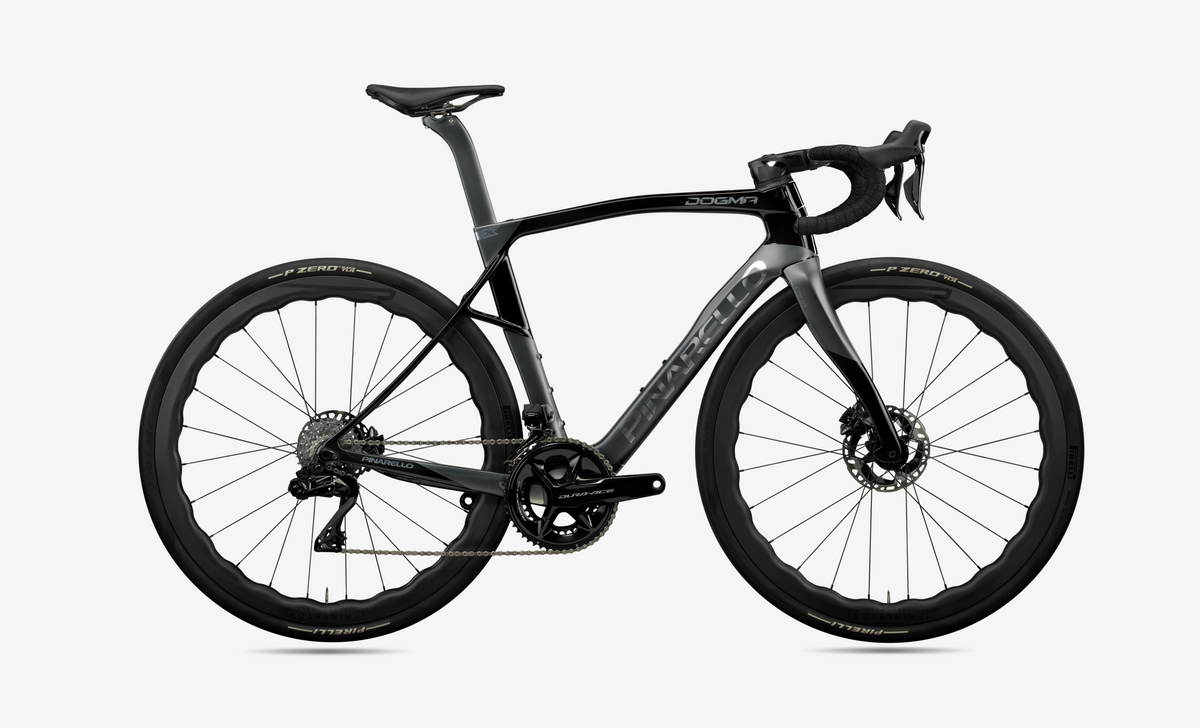

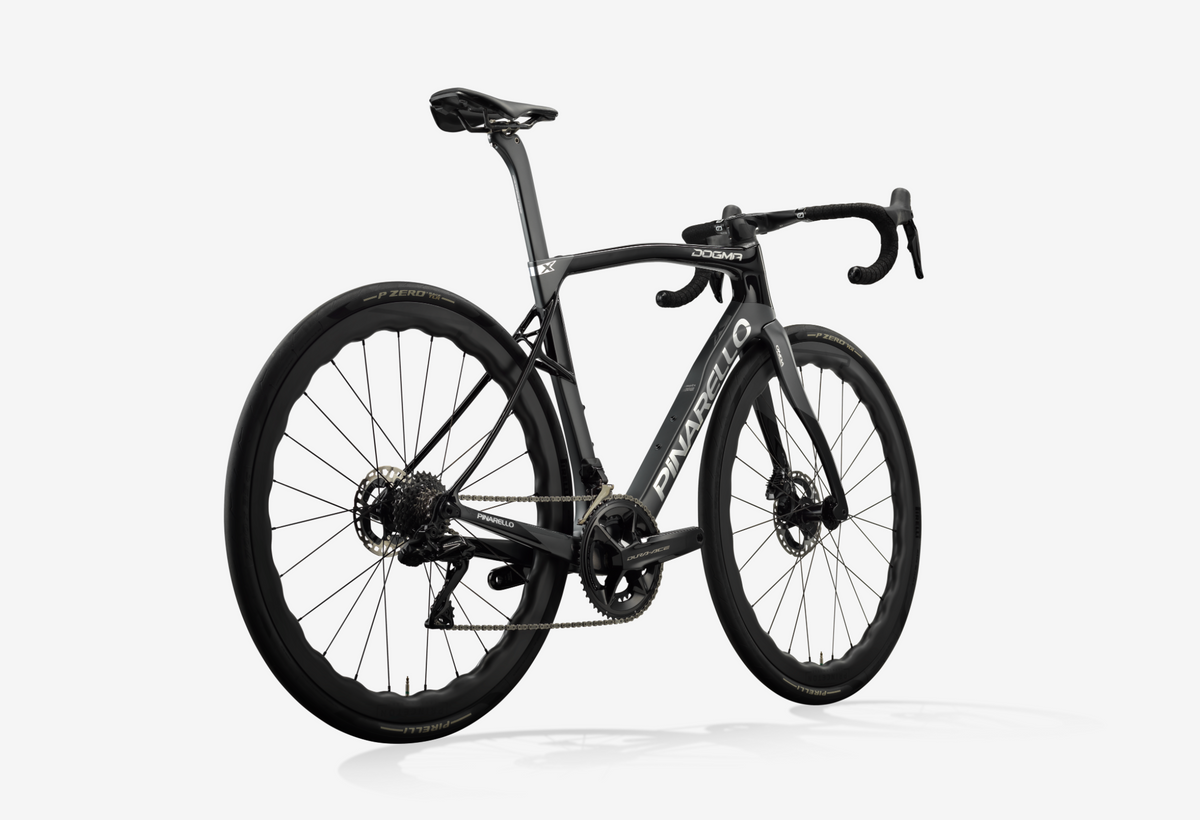

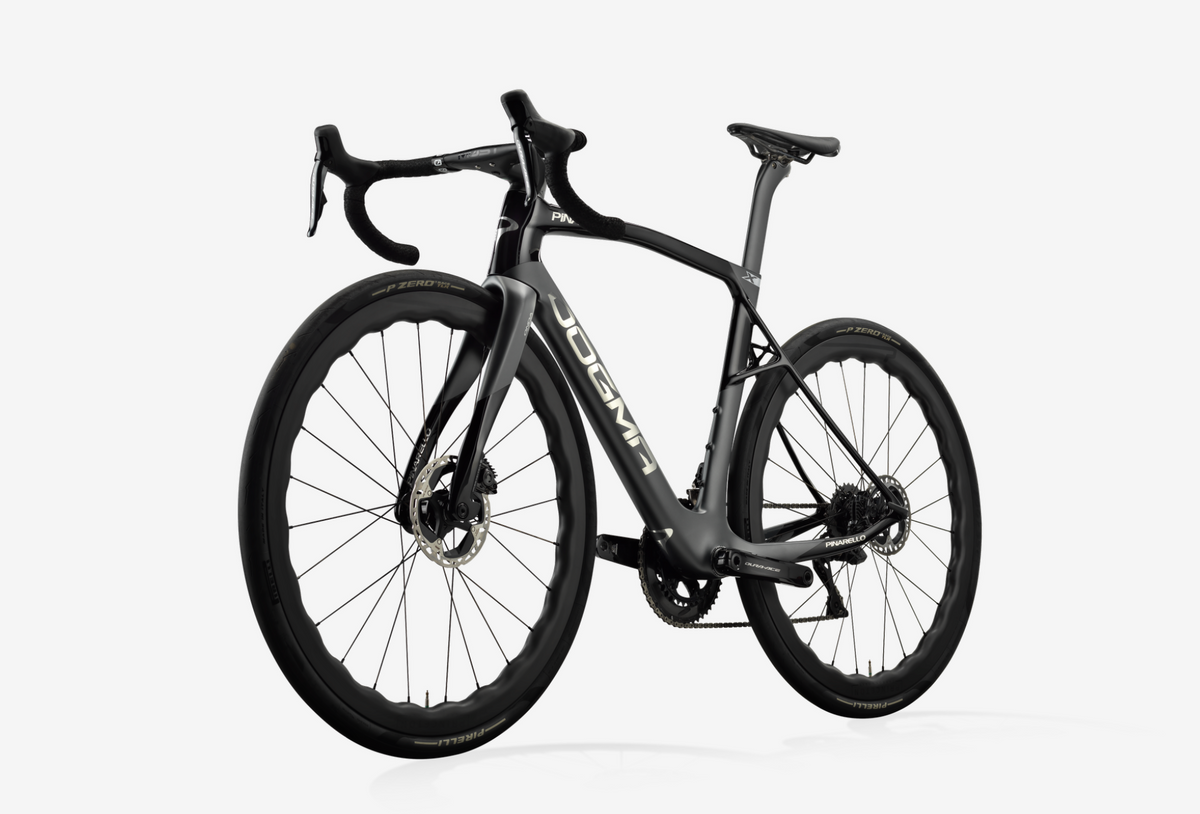

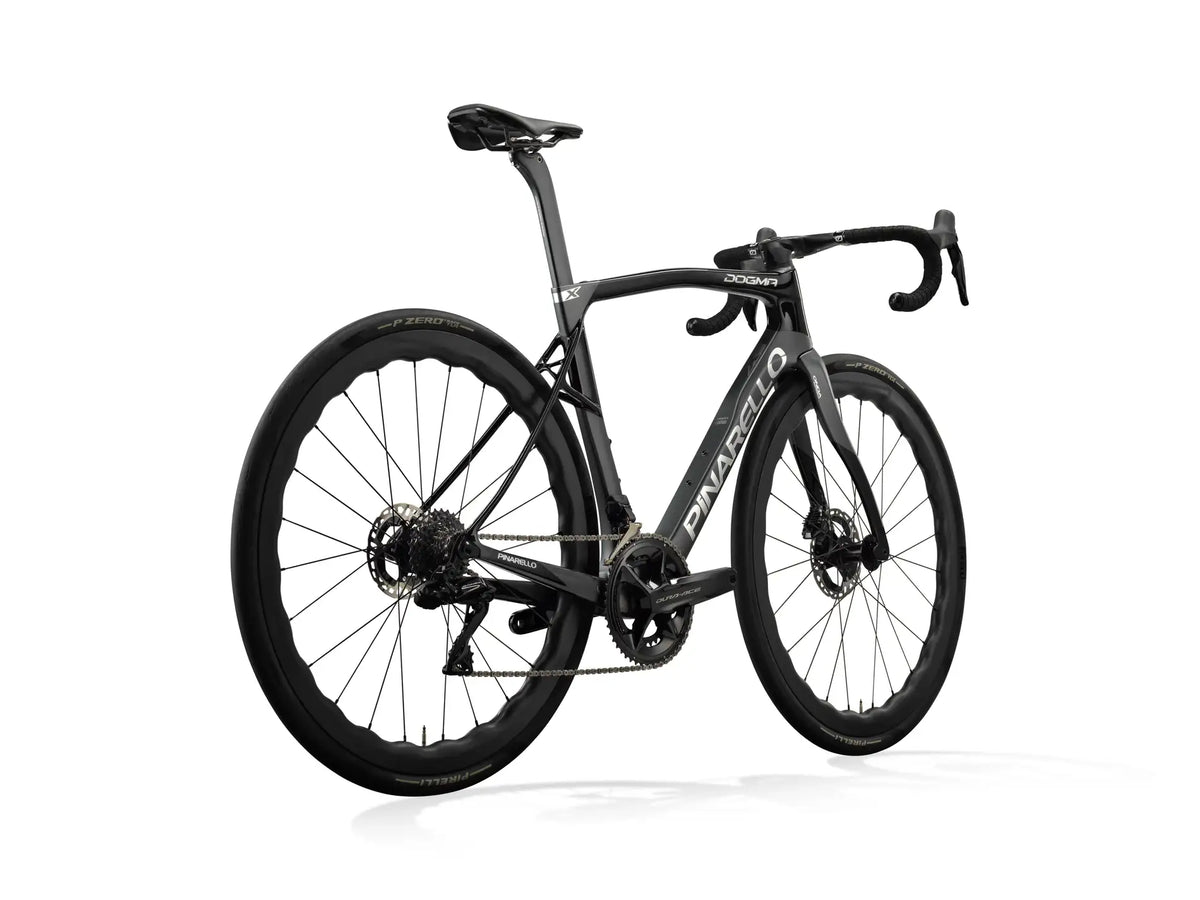

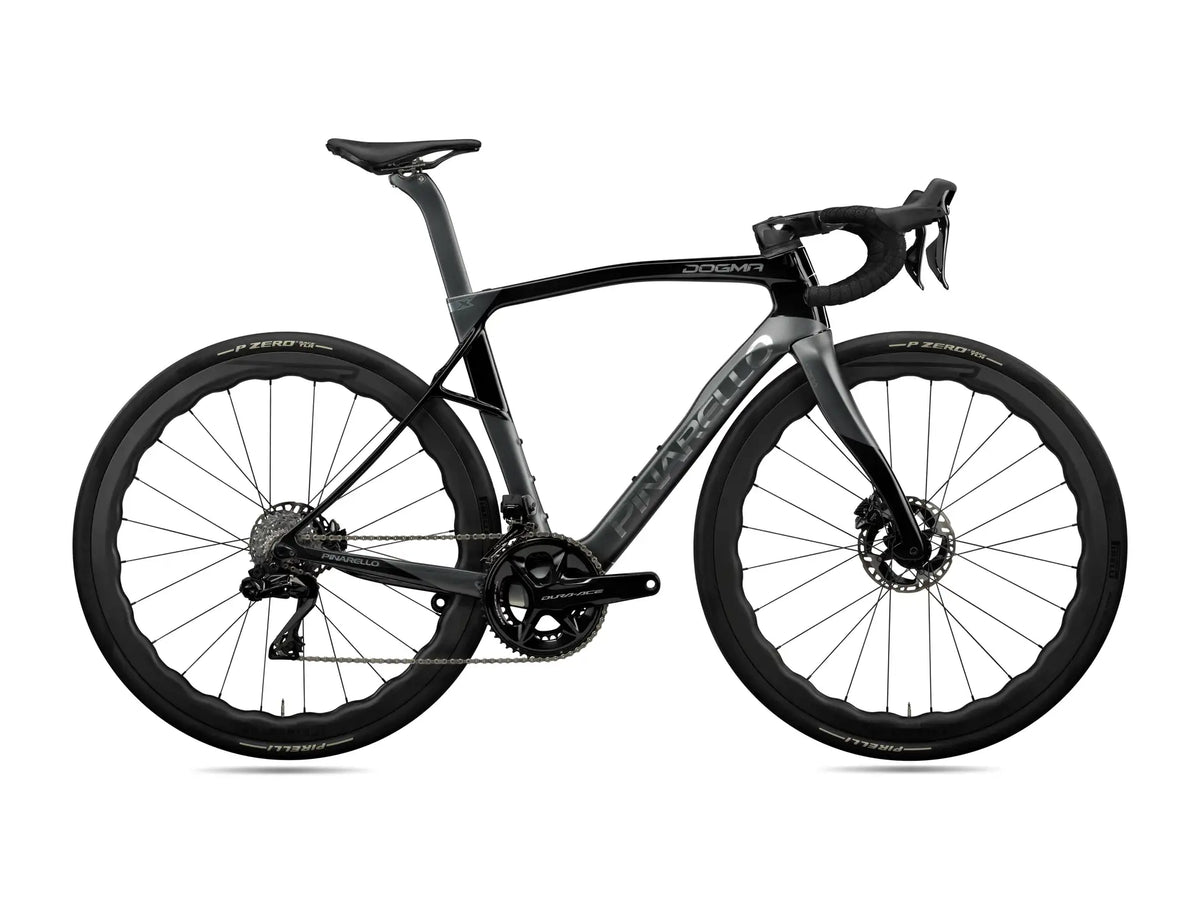

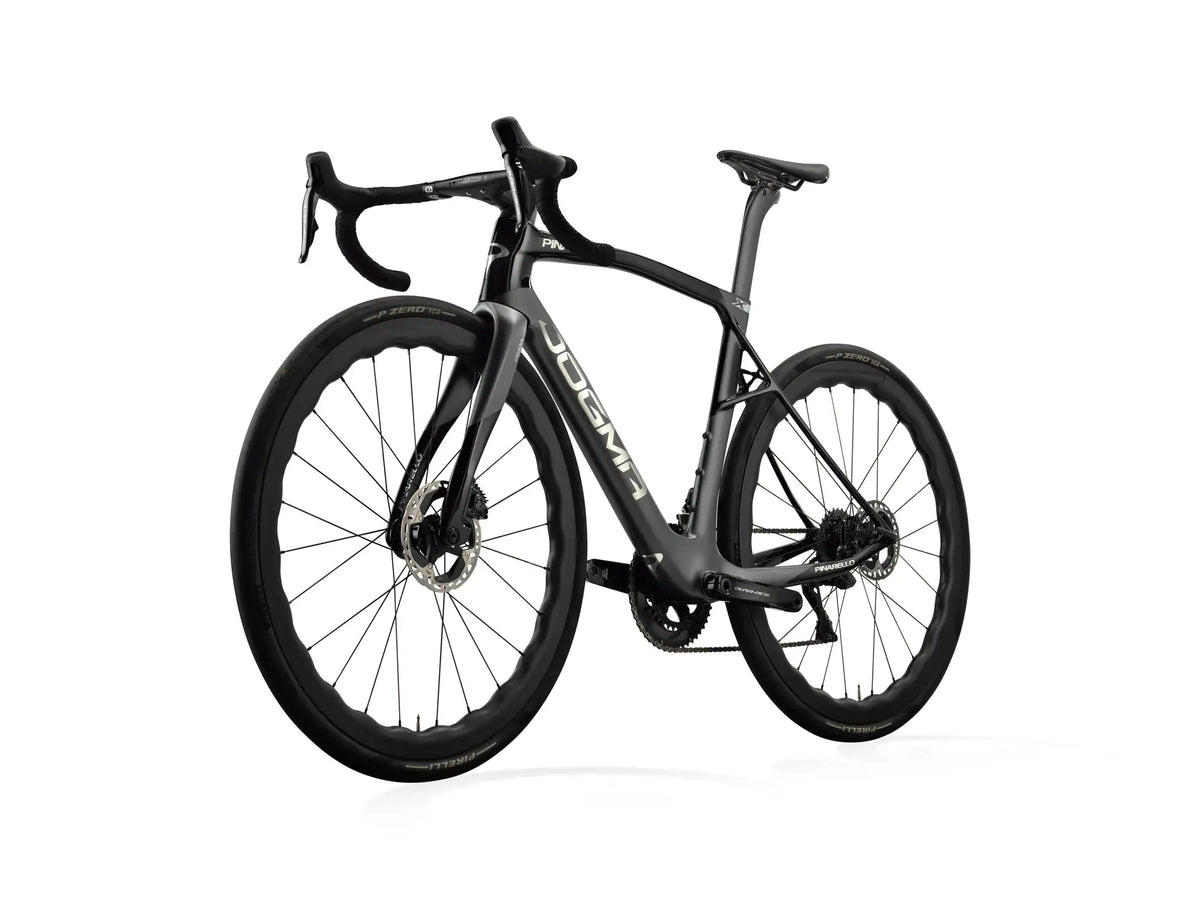

NEW Pinarello Dogma X Dura-Ace Di2

Size guide

$15,500.00
In-Store Experience & Pro-Fit Required
For modified bikes, we use the MSRP of the closest equivalent stock version
Lifetime Frame Warranty
Expert Geometry Consultation
Priority Service Plan
Ask a question
NEW Pinarello Dogma X Dura-Ace Di2 NEW Pinarello Dogma X Dura-Ace Di2 NEW Pinarello Dogma X Dura-Ace Di2

Design the exceptional

We've always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform.

Form over function is a constant source of discussion between our head designers and we believe the DOGMA F achieves the perfect blend of the two.

Navigation

Design the exceptional

Specifications

Bike Category Road
Brand Pinarello
Color Xolar Black
Rear derailleur Shimano Dura-Ace Di2 12sp
Model Dogma X

CARBON T1100 1K

High tensile and high modulus carbon fiber with patented Nanoalloy Technology for extreme performances.

X STAYS

A new Pinarello technology capable of absorbing vibrations maintaining a light weight frame and a very reactive BB stiffness

ASYMMETRIC FRAME PINARELLO X

For first Pinarello understood that, while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.

ENDURANCE GEOMETRY

A brand new approach that strikes the perfect balance between high-calibre performance and real-world comfort.

TYRE CLEARANCE UP TO 35MM

35mm tires to unlock the frames’ true potential in terms of both comfort and speed.

Size Guide

[ GEOMETRIES ]

CE CC L A [°] B [°] P T D R G REACH STACK WB
425 430 505 74.4 70 422 107 77 47 375 349.3 524.2 966.8
450 465 515 74.4 70 422 119 77 47 375 358.1 535.5 979.7
465 500 525 74 70.5 422 124 77 47 375 365.4 542.1 986.8
485 515 535 73.7 71 422 129 77 47 375 371.7 548.6 990.6
500 530 545 73.7 71.5 422 138 77 47 375 379.4 559 997
510 540 552 73.4 72 422 146 77 47 375 381.2 568.4 999.1
520 550 557 73.4 72 422 157 77 47 375 383 578.9 1004.3
525 560 565 73 72.5 422 165 77 47 375 384.6 588.4 1003.9
540 575 575 73 72.8 422 178 77 47 375 390.8 601.7 1011.7
560 595 595 72.4 73 422 214 72 47 375 395.3 632 1025.3
600 620 620 72 73 422 254 72 47 375 403.8 670.3 1047.6
Bike geometry diagram

CE: Seat tube center - end, CC: Seat tube center - center, L: Top tube center - center, A[°]: Seat tube angle, B[°]: Headtube angle, P: Chainstay, T: Headtube, D: BB drop, R: Fork rake, G: Fork height, Reach, Stack
