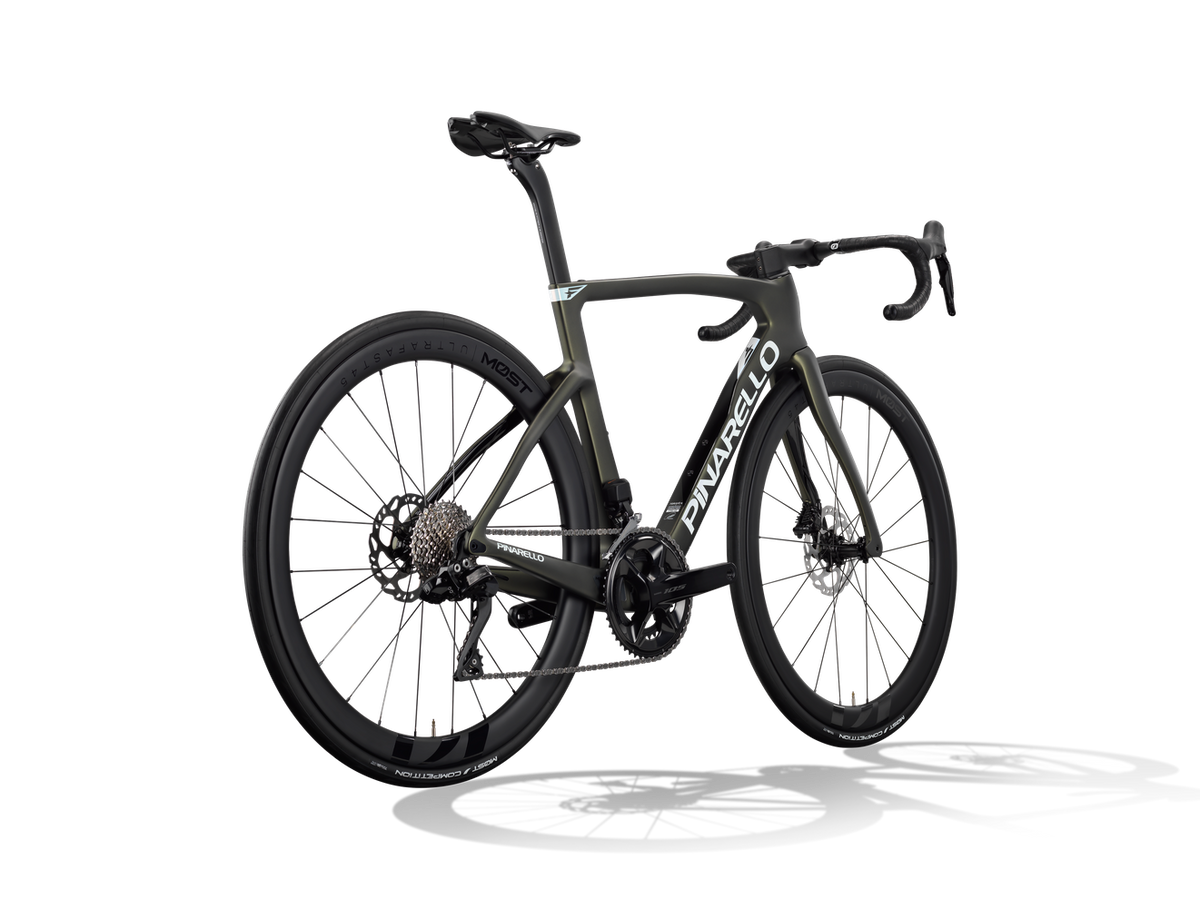

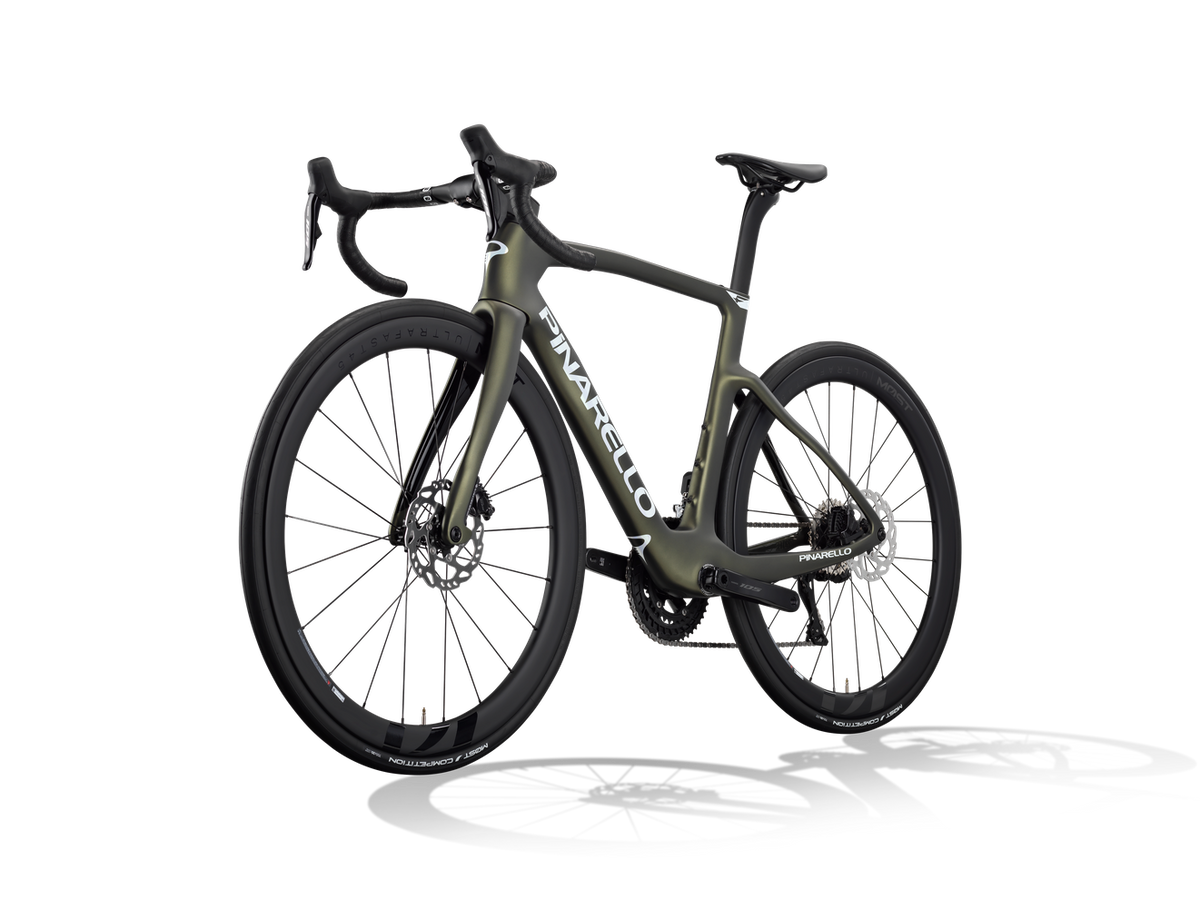

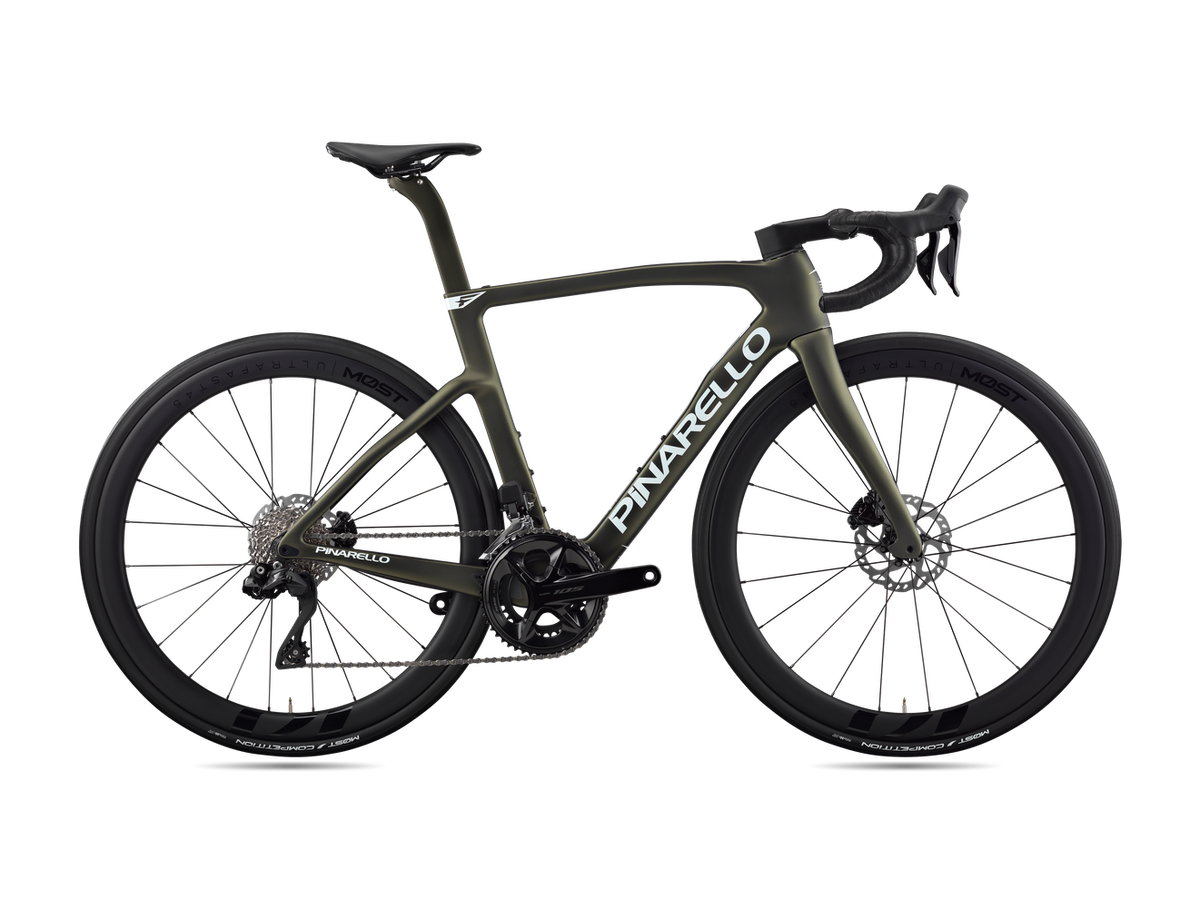

NEW Pinarello F5 105 Di2

Size guide

$6,200.00

In-Store Experience & Pro-Fit Required

Lifetime Frame Warranty

Expert Geometry Consultation

Priority Service Plan

Ask a question

Design the exceptional

We've always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform.

Form over function is a constant source of discussion between our head designers and we believe the DOGMA F achieves the perfect blend of the two.

Specifications

Bike Category Road

Brand Pinarello

Color ETNA BLACK MATT

Tires Most 30

Cassette Shimano 105 Di2 12sp

Chainrings Shimano 105 Di2 12sp

Handlebars Jaguar Claw ULTRA Alu

Rear derailleur Shimano 105 di2 12sp

Model Dogma F5

Wheels material Most Ultrafast 45

Stem Claw Ultra AERO Alu

Seat post fsc frontal seat clamp

Brakes Shimano 105, 2 pistons, 160mm rotors

TYRE CLEARANCE UP TO 32MM

32mm tires to unlock the frames’ true potential in terms of both comfort and speed.

DOWN TUBE

New DOWNTUBE shape, reduced thickness for improve aero performance

E-TICR HEADSET

To reduce the width of the headtube, we designed an innovative elliptical steering tube and completely new headset using bearings of a different diameter, wider on the bottom and narrower at the top. We also moved the internal cable routing from the sides to the front of the steering tube.

ONDA FORK

The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on descents.

HEAD TUBE

New Aero headtube, with increased surface and softer lines to improve aerodynamics and stiffness.

AERO KEEL

New Aero KEEL BB, reduced volume compared with Dogma F, improved stiffness, cleaner look.

INTEGRATED SEATCLAMP

Frontal integrated seat clamp, for a cleaner look and protection from sweat and dust.

CE	CC	L	A [°]	B [°]	P	T	D	R	G	REACH	STACK
425	430	500	74.4	69.5	410	102	67	47	373	351.3	502
450	465	515	74.4	70.5	410	109	72	47	373	365.4	517.3
465	500	525	74	71.4	411	114	72	47	373	372.2	525.2
485	515	535	73.7	72	411	119	72	47	373	378.2	532.1
500	530	545	73.7	72.5	411	128	72	47	373	385.6	542.4
515	545	555	73.4	72.8	413	143	72	47	373	388.3	557.7
525	560	565	73	73.2	413	154.5	72	47	373	390.8	570.1
560	575	578	73	73.7	413	183	72	47	373	395.5	599.2
580	595	600	72.4	73.4	413	225	67	47	373	400.4	633.4
