Design the exceptional
We've always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform.

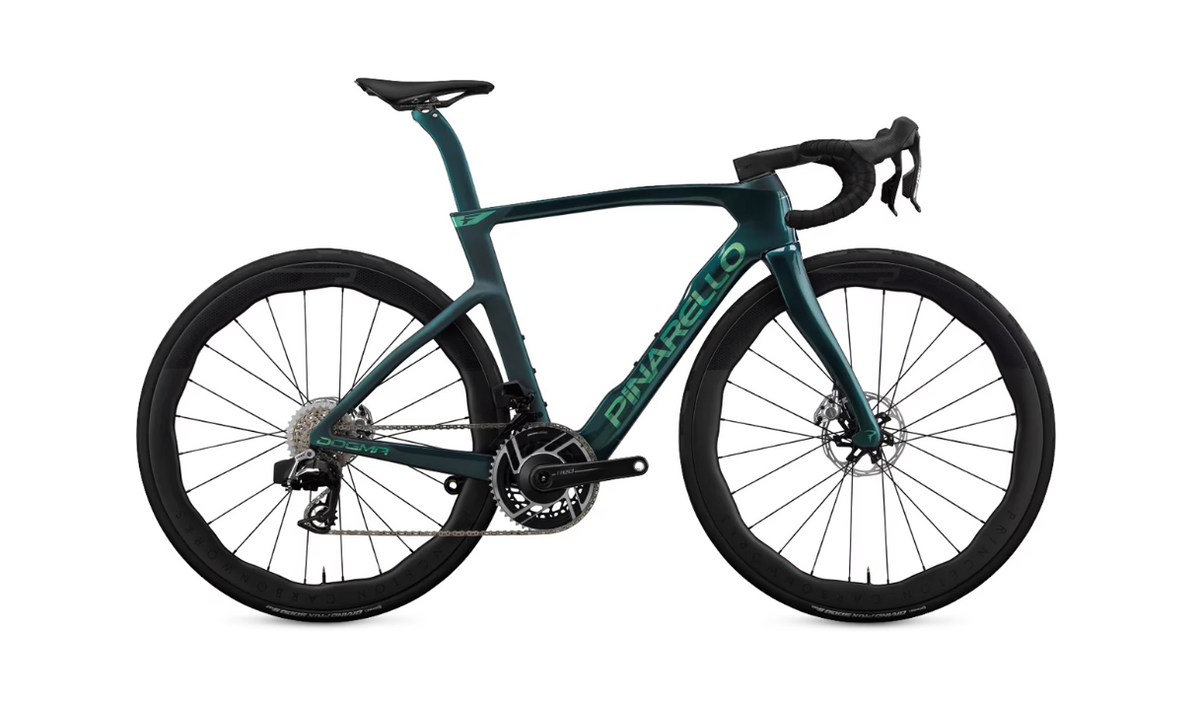

Form over function is a constant source of discussion between our head designers and we believe the DOGMA F achieves the perfect blend of the two.
Navigation
Specifications
CARBON M40X
The DOGMA evolves, changing its skin to surprise you one more time. We tested this new carbon fiber lay-up our X-Light models and Ineos Grenadiers team bikes. This new fibre has an exceptional tensile module that allowed us to reach the next level of lateral stiffness performance on the latest generation of our DOGMA F.
DOWN TUBE
The downtube has been completely redesigned to reduce the thickness and therefore improve the frontal aerodinamic performance of the frame and the aero drag
NEW AERO-KEEL BB
Trickle-down technology from the Hour Record, The new DOGMA F down tube is rotated by 3.5°, to create a keel shape that improves the aero performance of the BB area by 1.2%.
TOP TUBE
Our unique head tube “nose” shape, introduced first on the DOGMA F8 in 2014, evolves again, reducing the volume and the width of of the nose area by 8mm with a more streamlined design to improve the frontal aero penetration.
HEADSET
To reduce so much the width of headtube we had to design an innovative elliptical steering tube and a completely new headset with differentiated bearings diameter, wider on the bottom and narrower at the top.
THRU AXLES
New shorter thru axles. The bolt on the righ side of the fork has been integrated in the carbon eliminating the external hole. Same has been done also on the frame with the additional integration of the rear derailleur dropout. This solution improves both design and aero performances of the frame
NEW ONDA FORK
The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on the descents.
INTEGRATED SEAT POST CLAMP
Our seatpost clamp has been reduced in size and fully integrated inside the frame seat tube. This new solution reduces the weight, improves the design and increases the cleanliness of the system by limiting the amount of dust and sweat that can access the clamp.
Size Guide
[ GEOMETRIES ]
| CE | CC | L | A [°] | B [°] | P | T | D | R | G | REACH | STACK |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 425 | 430 | 500 | 74.4 | 69.5 | 407 | 102 | 67 | 47 | 373 | 351.5 | 502 |
| 450 | 465 | 515 | 74.4 | 70.5 | 407 | 109 | 72 | 47 | 373 | 365.4 | 517.3 |
| 465 | 500 | 525 | 74 | 71.4 | 407 | 114 | 72 | 47 | 373 | 372.2 | 525.2 |
| 485 | 515 | 535 | 73.7 | 72 | 407 | 119 | 72 | 47 | 373 | 378.2 | 532.1 |
| 500 | 530 | 545 | 73.7 | 72.5 | 407 | 128 | 72 | 47 | 373 | 383.3 | 542.4 |
| 510 | 540 | 550 | 73.4 | 72.8 | 408 | 136 | 72 | 47 | 373 | 385.3 | 551 |
| 520 | 550 | 557 | 73.4 | 72.8 | 408 | 147 | 72 | 47 | 373 | 389.2 | 561.5 |
| 525 | 560 | 565 | 73 | 73.2 | 409 | 154.5 | 72 | 47 | 373 | 390.8 | 570.1 |
| 540 | 575 | 575 | 73 | 73.7 | 409 | 168 | 72 | 47 | 373 | 396.7 | 584.8 |
| 560 | 595 | 587 | 72.4 | 73.4 | 409 | 204 | 67 | 47 | 373 | 393.4 | 613.2 |
| 600 | 620 | 620 | 72 | 73.4 | 411 | 244 | 67 | 47 | 373 | 410 | 651.6 |
CE: Seat tube center - end, CC: Seat tube center - center, L: Top tube center - center, A[°]: Seat tube angle, B[°]: Headtube angle, P: Chainstay, T: Headtube, D: BB drop, R: Fork rake, G: Fork height, Reach, Stack
